首页-产品中心-培养箱 干燥箱 气氛炉 水浴锅 振荡器 > 高级微波消解萃取系统ETHOS A
相关文章
ARTICLES详细介绍

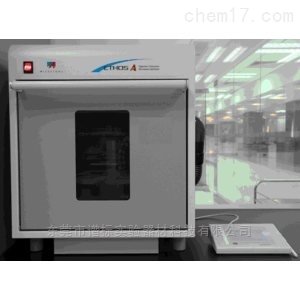

ETHOS A高级微波消解萃取系统产品介绍：
众所周知，微波消解仪提供了整个分析过程的步，也是成功分析的最关键一步。Milestone公司把我们全部的热情、所有相关领域的知识、未来检测对仪器的需求全部倾注在全新的ETHOS UP上，以更好地为全球的化学家们提供服务。ETHOS UP秉承Milestone一贯的理念，将仪器硬件、操作界面、监控手段、高压转子实现完美的融合。ETHOS UP高级微波消解萃取系统集多种微波功能于一身，可以用于微波萃取、微波合成。
ETHOS A高级微波消解萃取系统组成结构介绍：
| Item | P/N | Description | |||||
| 主机详细描述及报价 | |||||||
| 1 | 47100/A | ETHOS A Advanced Microwave Digestion/Extraction System | |||||
| ETHOS A 高级微波消解/萃取系统 | |||||||
| The complete package includes : | |||||||
| 1.微波性能 | |||||||
| l | Frequency： 2450MHz, | ||||||
| 发射频率：2450MHz, | |||||||
| l | Unpulsed microwave emission.PID Contral continuous Power 0-100%, | ||||||
| 非脉冲微波发射，PID自动功率调整 0-100%, | |||||||
| l | Specialty Magnetron system with Rotating diffuser for homogeneous microwave distribution in the cavit | ||||||
| 专业磁控管加转动散射器保证腔体内能量分布均匀 | |||||||
| l | Magnetrons protected from reflected microwave energy | ||||||
| 微波能量反射中磁控管保护,超强微波聚焦功能 | |||||||
| l | Installed power:2500Watt. Microwave power: 1500 Watt, controlled via microprocessor continously | ||||||
| 仪器安装功率：2500W，微波功率：1500W，计算机控制，连续可调 | |||||||
| 2.腔体安全系统 | |||||||
| l | Self-sealing, pressure responsive, stainless steel door with protected glass window | ||||||
| for visual inspection. | |||||||
| 不锈钢、自密封泻压安全门，具有防爆观察窗 | |||||||
| l | Microwave cavity: All stainless steel hardwarecoated with 5 layers of PTFE applied at 350°C | ||||||
| 微波腔体：具5层可耐350°C高温PTFE涂层的全不锈钢硬件 | |||||||
| l | All hardware protected against acids/organic solvents with polymer coating both inside and outside surfaces | ||||||
| 所有硬件内外表面聚合物涂层，防酸、有机溶剂腐蚀 | |||||||
| l | 5 years warranty on coating against corrosion. | ||||||
| 5年内保证腔体无任何腐蚀，如出现腐蚀免费更换 | |||||||
| l | 4 safety interlocks to prevent microwave emission with open door | ||||||
| 四组控制安全开关,防止微波泄漏 | |||||||
| l | Highest safety through unique pressare-responsive door. | ||||||
| 高安全性能的自密封防爆保护门 | |||||||
| l | Built-in high flow exhaust system, flow rate 6m3/min acid corrosion resistant | ||||||
| 内置大流量排风系，流量6m3/min,抗腐蚀 | |||||||
| l | Built-in Automatic Pressure limit monitor sytem for all vessel | ||||||
| 内置压力监控系统：专利弹性变形检测，当样品罐出现异常高压时，自动调整压力 | |||||||
| l | Inside of microwave cavity illuminated by a lamp. | ||||||
| 内置腔体照明 | |||||||
| 3.规格尺寸 | |||||||
| l | 1 RS 232 port for external devices. | ||||||
| 带一RS232接口以外接设备 | |||||||
| l | Largest microwave cavity: 37 x 34.5 x 33.5H cm (approx. 43 liters) | ||||||
| 腔体尺寸:37×34.5×33.5 cm（约43升） | |||||||
| l | Weight: ca. 90 kg,External Dimensions:55 x 55 x 70H cm | ||||||
| 重量：大约90Kg，外型尺寸：55 x 55 x 70H cm | |||||||
| 4.满足标准 | |||||||
| l | ISO9001;9002;CE;ECXXX;IEC705; | ||||||
| l | EPA3015 SW-846;EPA3051 SW-846;EPA3052 SW846;EPA3546;ASTM;GLP | ||||||
| Operator Manual in English | |||||||
| l | Power: 230 V/50 Hz, 2,5 kWatt | ||||||
| 2 | 50214 | ATC-400CE High precision temperature control System, Control temperature | |||||
| range is 0-300℃, Acuuracy:±0.1℃ | |||||||
| ATC-400-CE高精度温度控制系统,控温范围：0-300℃，检测精度：±0.1℃ | |||||||
| 3 | 计算机 | Control Terminal | |||||
| l | Control terminal 260, touch screen, indutrial grade controller 5" screen, | ||||||
| 260控制终端，触摸屏技术，5寸显示屏，工业级控制器 | |||||||
| l | 1 PS2 port for mouse, 1 RS 485 port for microwave unit | ||||||
| 配置1个PS、1个RS485通信接口 | |||||||
| l | Internal memory save methods and process reporting data inclusive of multiple | ||||||
| l | steps ,each step includes microwave power, time,internal and external | ||||||
| l | temperature, and pressure. | ||||||
| l | 内置存储单元储存方法和过程数据，包含多步消解程序，每步包含微波功率、时间、压力、罐内温度、罐外温度等 | ||||||
| 软件 | Software | ||||||
| l | Easy-Control Software for full GLP documentation with PID Algorithms to exactly duplicate the required temperature curve and for full Quality Assurance. | ||||||
| Easy-Control软件完全符合GLP标准，PID控制技术，确保精确控温曲线和完整的质量保证 | |||||||
| 4 | SK-12HT | MPR-600/12S High Pressure Segment Rotor for temperature control | |||||
| MPR-600/12S 高压分体转子（12罐） | |||||||
| MPR-600/12S central part, top safety ring,12 standard segments complete. with PP holders, | |||||||
| and protection shields, | |||||||
| MPR-600/12S中心部件、顶部弹簧、12个标准罐座及外罐 | |||||||
| Maximum Pressure: 100bar (1500psi) | |||||||
| 最大压力：100bar（1500psi） | |||||||
| Maximum Temperature: 3000C | |||||||
| 最大温度：300℃ | |||||||
| Rapid air-water cooling | |||||||
| 快速空气或水冷却 | |||||||
| MPR-600/12S Complete Package for ATC-400-CE | |||||||
| 33806 | HPV-100 TFM vessel 100 mL | ||||||
| HPV-100 TFM内罐 100mL | |||||||
| 35140 | SD-05/S TFM Cover | ||||||
| TFM 盖子 | |||||||
| 50211 | Reference cover complete for temperature control | ||||||
| TFM主控罐盖子 | |||||||
| 34010 | HTC-1000 Special Spring for high pressure rotor | ||||||
| HTC-1000高压弹性安全帽 | |||||||
| 5 | 工具 | ROTOR ACCESSORIES | |||||
| MPR-600/12S Work Station | |||||||
| MPR-600/12S 工作台 | |||||||
| Tension Wrench | |||||||
| 力矩扳手 | |||||||
